900mm D400 watertight manhole covers with inspection hole
In China , PetroChina, SINOPEC and other fueling station are our loyal clients for many years.
In abroad, UK, USA, Australia , Kenya , Uganda, Singapore, Malaysia and other countries are using our frp manhole cover always.
Product Details:
900mm D400 watertight composite manhole covers
MC Fuel station covers have the characteristics of safety, corrosion resistance and easy installation. Specially produced for gas stations, with guaranteed quality!
Product information
|
Name |
900mm D400 watertight manhole covers |
|
Material: |
Composit(SMC) |
|
Size: |
Clear opening 900mm (35") |
|
Weight: |
88kgs |
|
Load: |
D400 |
|
Standard: |
EN124-5 |

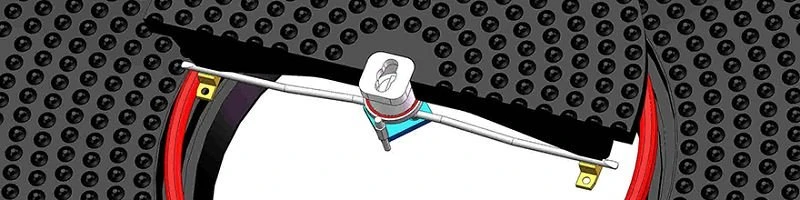

With Central Dip Port
Dip caps can be colour coded to the fuel grade and can be chained to the main cover for added security.
●Material:
SMC
●Strong waterproof
Single rubber seal with oil and gas resistance, wear resistance and high and low temperature resistance is used between the cover and the frame , which makes the complete set of covers have good anti-leakage performance.
●Anti-Slip surface
●Lockable
●Customized available
M&C have professional engineering department and we have rich experience in development and customization and provide you with manhole covers moulding design according your size,pattern,color, loading ,logo, function request.
Product specification
|
ltem No. |
Dimensions |
Load Rating | Weight | ||||
|
A |
B |
C |
H |
Cover Weight |
Total Weight |
||
|
MC-900DIP |
900 |
1080 |
980 |
100 |
400KN/D400 |
56Kg/123lbs |
88Kg/194Ibs |
|
MC-900CIP |
900 |
1080 |
980 |
100 |
250KN/C250 |
47Kg/103lbs |
79Kg/174lbs |
FAQ:
Q:What is your terms of payment ?
A:L/C, T/T,Cash
Q:Can we have a sample?
A:Certainly. The regular samples in stock can be free of charge, but you need to pay the freight. In case of subsequent cooperation, the freight can be deducted from the order.
Q：Can you send us the drawings?
A：We are pleased to provide you with the basic dimension drawings and product information for your reference and project evaluation.
Q:Can composite manhole covers be made in different colors
A:We have complete manhole cover production equipment and production line. All composite manhole cover materials and formulas are developed and produced by our factory. And our regular colors are black, gray and green. Of course, please tell us the color card number of other colors. We are happy to provide you with exclusive customized services. Color customization, please contact info@mcovers.com
Q:What are the difference of composite manhole covers EN124-5 grade ? What do they mean ?
A: A Class : Areas which can only be used by pedestrians and pedal cyclists
B Class : Footways, pedestrian and comparable areas , car parks
C Class : For gully tops installed in the area of kerbside channels of roads.
D:Carriageways of roads, for all types of road vehicles or the gas station tank covers.
E:Areas imposing high wheel loads. e.g. docks.aircraft pavements.
Q:How to buy a composite manhole cover ?
A:Direct purchases from manufacturers (M&C) are always preferable since you can obtain a better deal and can see the manufacturing process and giving you more assurance about the quality of the raw materials.
M&C factory is one of the China top producers and suppliers of all varieties of manhole covers. You can contact us via info@mcovers.com or whatapp +18058395188
Q：Are your composite manhole cover sealed?
A：Our standard manhole covers are sealed and waterproof, but they can also changed to unsealed type. If you request the drain covers ,please request us once inquiried.
